Front Mounted Grass Rake

Model: WR600

01  /  Overview

The All-Rounder

Can be used with a round or square baler to complete two jobs at one time saving time, labour and fuel. If you’re an owner operator contract baling for farmers the WR 600 coupled to a tractor pulling a baler-wrapper combination saves even more dollars and is a very low cost way to get premium quality baleage.

Unique action forms square-edged windrows with baler forming ideal shaped round bales that maintain the correct shape when wrapped.

02  /  Demonstration Video

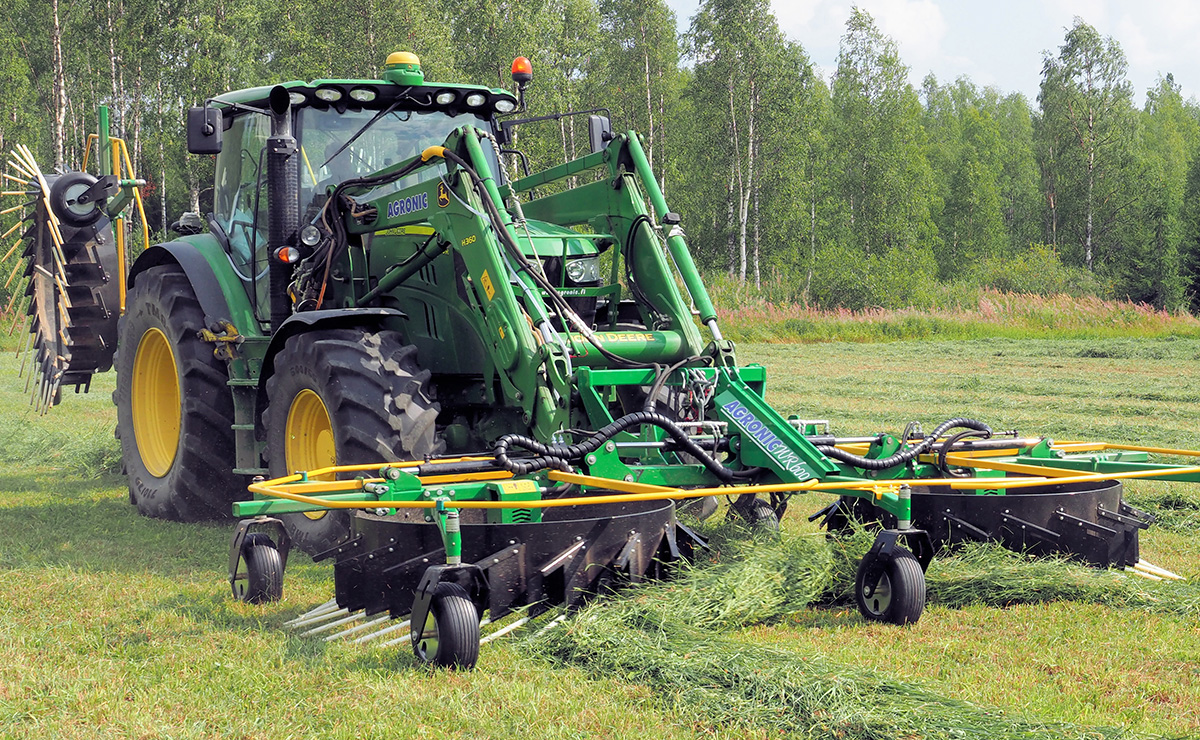

Agronic WR600 Front Mounted Rake in Action

Customer talking about 600.

The amount of time I save compared to going out and raking, then hooking up baler & wrapper and doing these processes separately, I’m saving at least 50 to 60 % of the raking, baling & wrapping cycle…..so on that basis its a no-brainer!

Read More

With the rotor width able to be adjusted in & out on the move while raking it’s great for raking narrower areas between troughs & fence lines that would normally be left.

I think it is a very good rake and saves a lot of time being able to rake and bale together in one pass. Its easy to see where the rake is raking whereas with trailed rakes its easy to misjudge corners or get too close to fence lines without realizing. Its very easy to learn to operate as you can see it, ie its right there in front of you.

Joe McFarlane, Grasslands farming & hay contracting.

03  /  WR600 Front Mounted Rake Information

Key Features / Benefits

  • Wider working (6.1 metres)
  • Fingertip control with FEL joystick
  • Optimum forage quality
  • Future proofed
  • Massively reduced maintenance

Technical Specifications

Weight:860kg
Max. Working Width: 6.1m
Transport Width: 2.8m
Max Windrow Width: 2.2m
Rotors and Tines: 2x rotors each equipped with 2x 36 tines
Size of tires 16x 6.50-8: 7 pc
Hydraulic Requirements:1x2 DA, 1x SA, with free return
Hydraulic Heavy-duty:40 mm shaft
Options
Euro Norm Loader Bracket:Option
Front 3 Point Adapter:Standard
Rear 3 Point Adapter:N/A

Lease / Ownership Subscriptions

For details on lease and ownership subscriptions for the WR600, please call us on 0800 894 171 or email us at sales@groundgear.co.nz to discuss our options.

04  /  WR600 Testimonials

Owner Operator Feedback from Around the World

05  /  Downloads

WR600 Detailed Information

03  /  WR600 Front Mounted Rake Information

Key Features / Benefits

  • Wider working (6.1 metres)
  • Fingertip control with FEL joystick
  • Optimum forage quality
  • Future proofed
  • Massively reduced maintenance

Technical Specifications

Weight:860kg
Max. Working Width: 6.1m
Transport Width: 2.8m
Max Windrow Width: 2.2m
Rotors and Tines: 2x rotors each equipped with 2x 36 tines
Size of tires 16x 6.50-8: 7 pc
Hydraulic Requirements:1x2 DA, 1x SA, with free return
Hydraulic Heavy-duty:40 mm shaft
Options
Euro Norm Loader Bracket:Option
Front 3 Point Adapter:Standard
Rear 3 Point Adapter:N/A

Lease / Ownership Subscriptions

For details on lease and ownership subscriptions for the WR600, please call us on 0800 894 171 or email us at sales@groundgear.co.nz to discuss our options.

04  /  WR600 Testimonials

Owner Operator Feedback from Around the World

05  /  Downloads

WR600 Detailed Information
